The Tray

The Tray

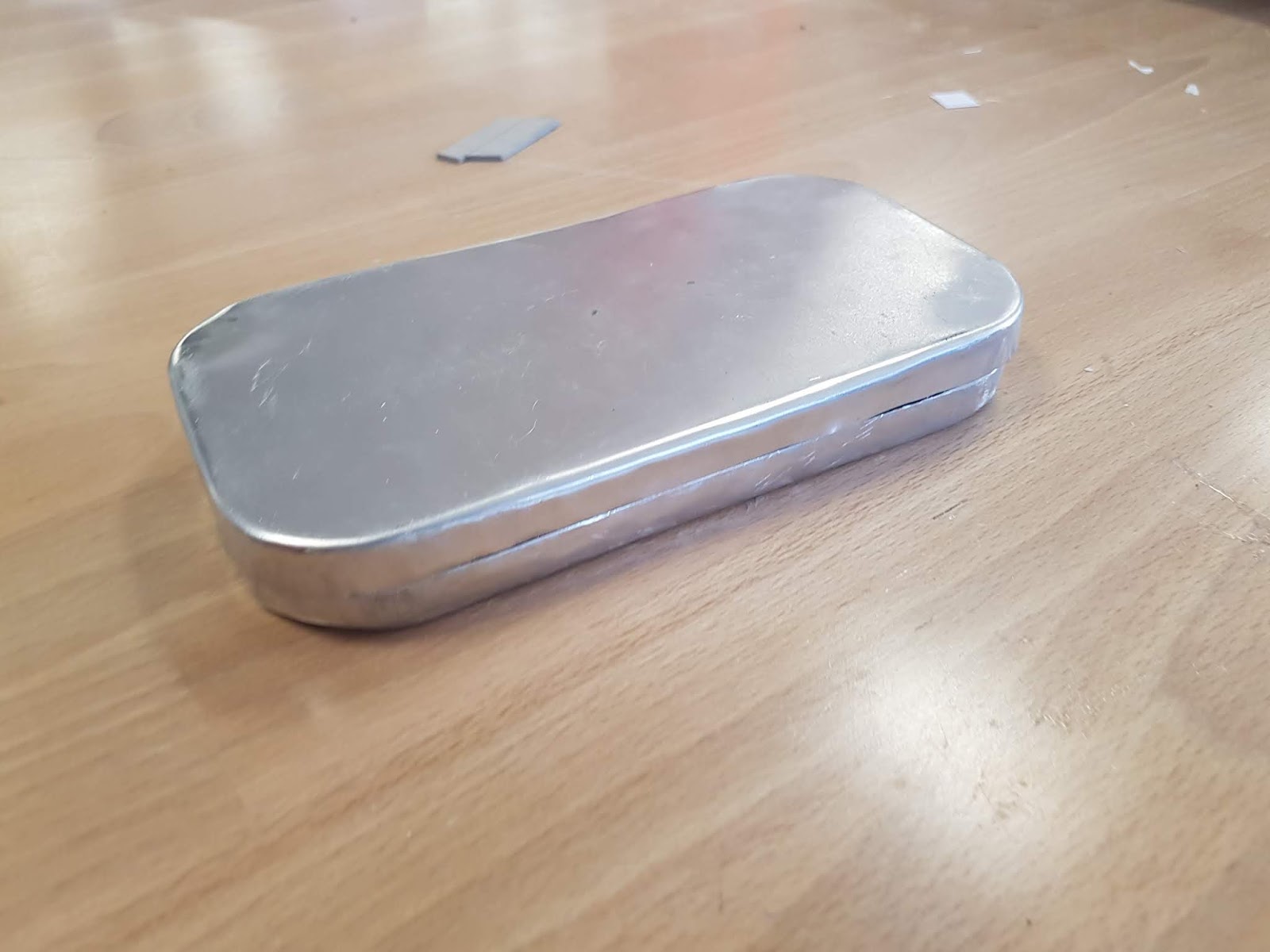

To create the tray, a rectangle of aluminum was sandwiched between two wooden templates in a vice, leaving a 1 cm overlap of the template. This was then hammered into shape around the template.

The sides were fairly straight forward, however i found creating the trays corners fairly challenging and had to continuously remove the tray from the template to hammer out potential folds and remove excess material as the corners stretched upward, shrinking into shape.
